PWM to DAC Converter Input Pulse Signal Output 0-5V/0-10V Voltage Analog (5PCS 0-10V with Pin)
4.5 (141 items)
Limited Time SaleUS$12.87 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 221119710 | Release Date | 2026/05/03 | List Price | US$8.58 | Model Number | 221119710 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

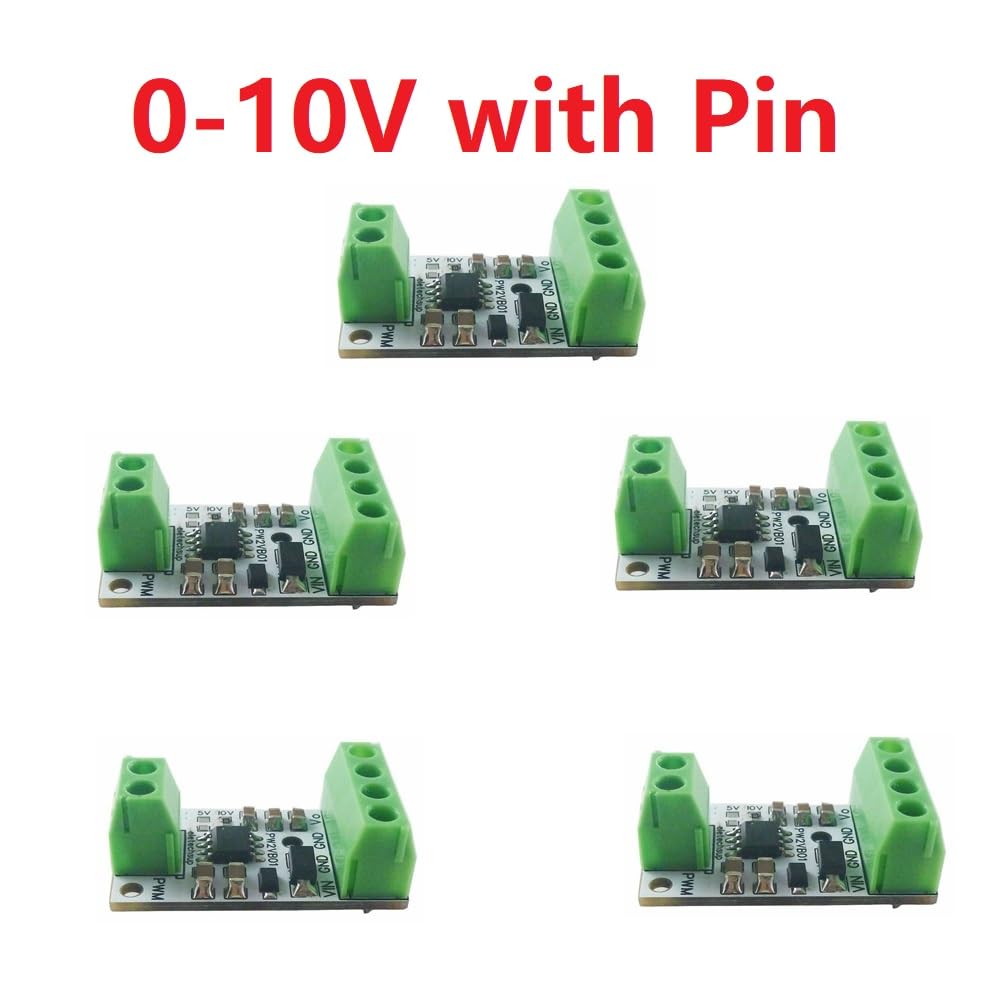

Product Title: PWM to DAC Converter Input Pulse Signal Output 0-5V/0-10V Voltage Analog for Arduiuo MEGA2560 PLC Raspberr Pi ESP32 NodeMCUProduct List: PWM to DAC Converter Input Pulse Signal Output 0-5V/0-10V Voltage AnalogFeatures:Working voltage: 10V-30V (Recommended 12V/24V)Working current: <2mAPWM Duty cycle: 0%-100%PWM Frequency: 50Hz to 50KHzPWM Level: 3.3V / 5VOutput voltage range: 0-5V/0-10VOutput voltage error: <1%Output voltage linearity error <0.5%Maximum drive current capability: 15MA (DC 12V), 20MA (DC 24V)Startup time: <2msOperating temperature: -40°C to 85°CSize : 29.5 x 16.5 x 6mmWeight: 2.2g(Only Board) ;4.5g(With Terminal)Typical Application: PWM to 0-5V/0-10V Outputfor Arduino UNO MEGA PRO DUE DACfor Raspberr Pi 2 3B+PLC analog IO expansion boardMotor speed regulation, LED dimmingInverter, power supplyIndustrial analog signal isolationWiring diagram:PW2VB01 input PWM signal with 0%-100% duty cycle, and linearly convert it into 0-5V or 0-10V analog voltage output.Example 1: If a 50% duty cycle PWM signal is input, PW1VA0 outputs 2.5V (0-5V version)/outputs 5V (0-10V version)Example 2: If output duty cycle 75% PWM signal, PW1VA0 output 3.75V (0-5V version) / output 7.5V (0-10V version)Pin description:Vin : Power+GND: Power-GND: Output-Vo : Output+PWM: PWM signal+GND: PWM signal-
- Working voltage: 10V-30V (Recommended 12V/24V)
- Working current: <2mA
- Maximum drive current capability: 15MA (DC 12V), 20MA (DC 24V)
| UPC | 759187322039 |
|---|---|
| Model | PW2VB01 |
| Brand Name | eletechsup |
| Part Number | PW2VB01 |
| Manufacturer | eletechsup |
| Mounting Type | DIN Rail |
| Number of Pins | 6 |
| Number of Channels | 4 |
| Included Components | PW2VB01 |
| Maximum Supply Voltage | 30 Volts (DC) |
| Minimum Supply Voltage | 10 Volts (DC) |
| Upper Temperature Rating | 85 Degrees Celsius |
